Manufactured from premium grade High Speed Cobalt(HSS) for increased hardness and toughness, improved edge strength and longer tool life.1. Tungsten steel material, selected high-quality tungsten steel bars, with ultra-high wear resistance and high toughness. 2. Extrusion tap design, ultra-fine particle high temperature resistant coating, increase durability 3. Fully grinding treatment, fine grinding spiral groove, optimized spiral design, smooth chip removal without sticking to the knife, greatly improving work efficiency1. Appropriately reduce the cutting speed and feed rate, which can prolong the service life of the milling cutter 2. When working, it is necessary to add cutting fluid to protect the knife edge, so that the cutting is smoother 3. The shorter the length of the tool protruding from the chuck, the better. If the protruding length is longer, please reduce the speed or feed rate by yourself

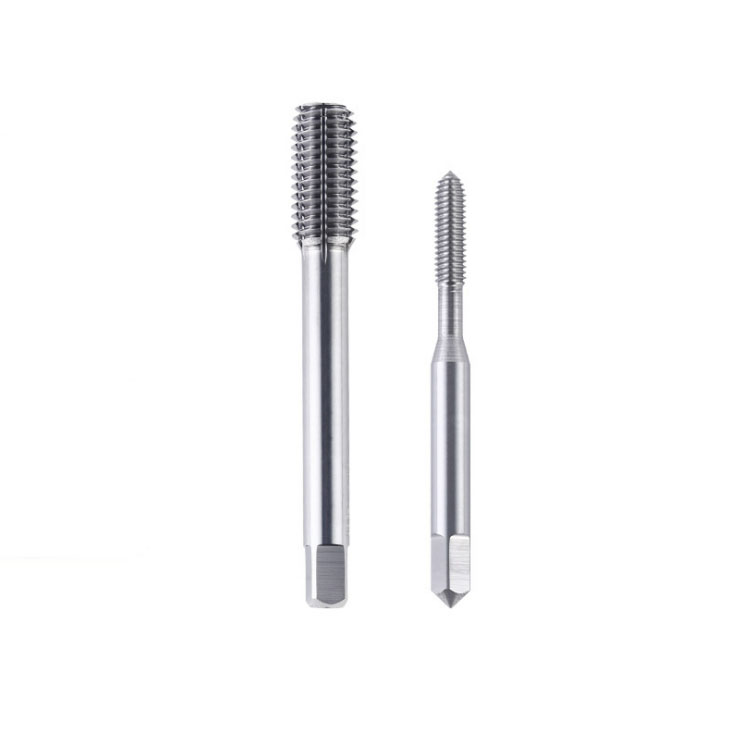

Product Name		Small Diameter Spiral Flute carbide screw threading taps		Applicable Material		Titanium alloy, stainless steel, magnesium alloy, die-cast aluminum
Brand		XINFA		Coating		Yes
Material		HSS		Use equipment		lathe
L	1	Dn	In	D	K	lk
30	3.5	1.1	7	3.0	2.5	5
32	3.5	1.3	7	3.0	2.5	5
34	4.2	1.5	8	3.0	2.5	5
36	4.9	1.7	9	3.0	2.5	5
36	4.9	1.8	9	3.0	2.5	5
36	4.9	1.9	9	3.0	2.5	5
40	5.6	2.1	10	3.0	2.5	5
42	6.3	2.3	10	3.0	2.5	5
42	5.6	2.4	10	3.0	2.5	5
44	6.3	2.6	11	3.0	2.5	5
44	6.3	2.7	11	3.0	2.5	5

1. High performance and productivity in a wide range of materials. 2. Chamfer type C can be used for both through and blind holes. 3. Chip-free threading operation produces a stronger thread than cutting taps with increased load bearing capabilities. Higher cutting speeds are, therefore, recommended. 4. Greater accuracy of finished thread with lower surface roughness. 5. Highly stable design means less risk of tap breakage and optimum process security. 6. Oil groove option facilitates coolant flow to the machining area, further increasing tool life.Widely used in many fields Aviation Manufacturing Machine Production Car manufacturer Mold making Electrical Manufacturing Lathe processing
